自埋CP阳极

添加时间:2010-11-5 编辑: 阅读:

  • 产品名称:自埋CP阳极
  • 产品定货号:MS-00413-00
  • 产地:美国
  • 推荐:
Product Overview
The VSE (Vaulted Seawater Envelope) anode is designed to provide reliable long-term cathodic protection in shallow water locations where the anode system must be buried below natural bottom.
The anode design maintains the MMO activated element in a silt-free seawater envelope, and current is discharged from the anode footprint. This allows optimization of current rating versus dimension, thus minimizing installation cost, and increasing reliability.
The anode structure is engineered to self-bury, and the ultra rugged construction will withstand suction dredging or bottom trawl operations. This makes the VSE ideal for retrofit, as well as for new construction, when shallow water structures are at stake.
Designed for the offshore wind energy operators, VSE offers an elegant green impressed current solution, utilizing renewable energy.
Applications
Offshore wind-turbines
Shallow water offshore / inshore structures
Docks, wharves, piers and jetties
Offshore pipelines
Outfalls and other inshore structures
Main Benefits
Reliable operation of impressed current in saline mud / sand burial situations.
Will work in seawater, river, or brackish water.
Simplified installation.
Can be installed under scour protection (rip rap) without fear of damage.
Optimized low resistance vs. dimension for a buried anode system.
Anode system discharges current from base and vents anode gases through the upper ridge.
VSE anode installed on bottom: it is already beginning to silt over
VSE anode completely buried after 9 months; photographed on a service visit.

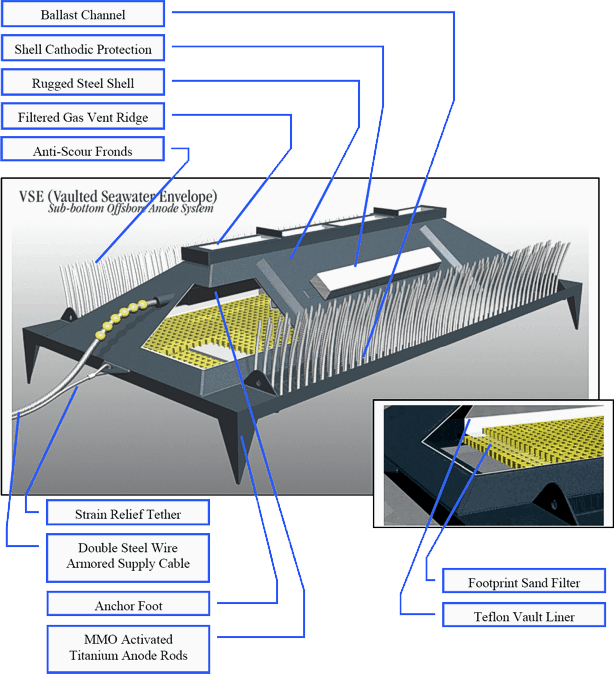

Construction


产品名称产品简介产品编号
自埋CP阳极The VSE (Vaulted Seawater Envelope) anode is designed to provide reliable long-term cathodic protection in shallow water locations where the anode system must be buried below natural bottom. MS-00413-00
