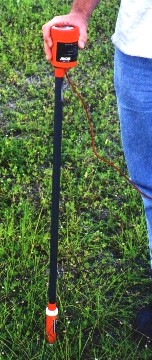

Model DPM Potential Meter
Designed for use by non-technical personnel, such as crews, servicemen, meter readers, etc., but also suitable for the most experienced engineers and technicians.
20 megohms input resistance practically eliminates low potential readings caused by resistance in the external circuit due to contact resistance of the reference electrode. This condition is frequently encountered in city work and in frozen ground. |
Features
Low cost
Rugged
Easy-to-use
Structure to earth potentials
+ 2 V and + 20 V ranges
Low-battery display
Optional electrode extension |
| |
Digital meter, auto-polarity +2 V, +20 V |
| |
Specifications
Large 1/2" LCD digits.
Weatherproofed neoprene gasket.
20 MΩ input resistance.
Solid state impedance amplifier.
Operates on one small 9 V transistor battery.
Low drain - long shelf life. Battery easily replaced and readily available. Automatic low-battery indication on display.
Push one button to read +2 V; push two
buttons to read +20 V while taking reading. Digital readout: +1.999 V or +19.99 V.
Filter eliminates errors caused by AC.
Up to 50 volts, 50/60 Hz. Operating temperature: -4°F to 185°F.
Molded PVC housing.
Plastic carrying case with resilient padding
Modular construction
Weight: about 3 lbs.
Size: 2 ½" deep x 10" long. |
| |
产品名称 | 产品简介 | 产品编号 |
---|---|---|
DPM数字电子电位器 | Designed for use by non-technical personnel, such as crews, servicemen, meter readers, etc., but also suitable for the most experienced engineers and technicians. | MS-00345-00 |
