涂层拉脱附着力测试仪



Portable, hand-operated instrument requires no external power source - ideal for lab and field use.

NEW... Large, easy-to-read LCD.

NEW... Pull Rate Indicator - allows operator to easily monitor and adjust the rate of pull in accordance with international test methods.

NEW... Easily select dolly sizes, change measurement units or store readings, with the touch of a button.

NEW... Conversion charts not required - tester automatically calculates pressure based on dolly size.

Inexpensive, single-use dollies eliminate cleaning for re-use and can be kept as a permanent record.

Each kit comes with everything needed for testing.

Durable

Weatherproof, dustproof and shockproof.

Quality hydraulic pump can be used in any position.

Rugged carrying case.

One year warranty.

Every PosiTest Adhesion Tester pressure system is calibrated and certified to ± 1 % accuracy using an NIST traceable load cell.

Self-aligning dolly enables accurate measurements on smooth or uneven surfaces.

Hi-grade, industrial pressure sensor ensures continued accuracy.

Conforms with ASTM D4541, ISO 4624 and others.

Versatile

NEW... Internal Memory stores maximum pull-off pressure, rate of pull, test duration and dolly size for up to 200 pulls.

NEW... Optional PosiSoft® software available for downloading to a computer.

10, 14, 20 or 50 mm dollies maximize capability and accuracy across a wide range of bond strengths.

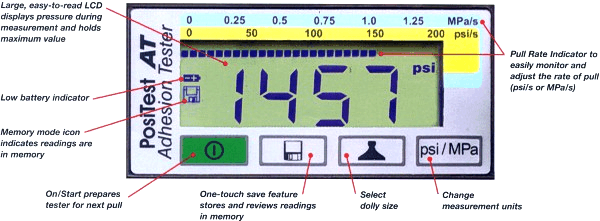

LCD displays pressure value in psi or MPa.

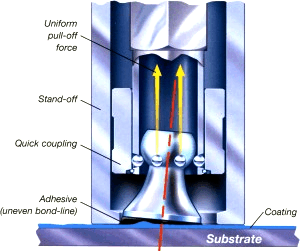

Self-Alignment Feature

Unequal pulling force during testing caused by uneven adhesive bond lines and coating surfaces can result in random, unexplainable readings. To obtain more repeatable and meaningful adhesion measurements, it is imperative that the pulling force applied to the test dolly be uniformly distributed over the surface being tested.

The Self-Aligning Dolly enable uniform distribution of the pulling force over the surface being tested, preventing a one-sided pull-off.

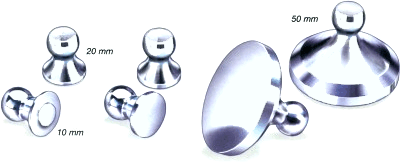

Test Dollies: The PosiTest Adhesion Tester uses inexpensive single-use aluminum dollies designed according to internationally accepted standards and practices. Available with full 10, 14, 20 or 50 mm surface diameters for different shapes and bond strengths.



Ideal solution for those who wish to download to a PC for printing or archiving.

Allows entry of notes and annotations.

Multi-language support including English, German, Italian, Spanish and French.

Exports to a document or spreadsheet.

Includes USB cable for computer hook-up.

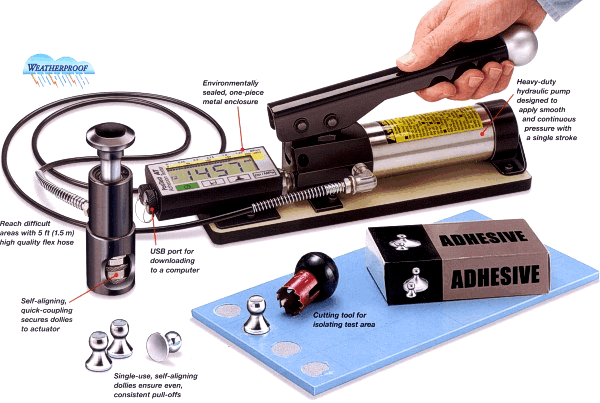

Adhesion tester with digital display

20 mm aluminum test dollies (20 ea.)

Abrasive pad

Cutting tool

Adhesive with mixing sticks & palettes

Cotton swabs

AAA batteries (2 ea.)

NIST traceable Calibration Certificate

Instruction booklet

Instructional video

Sturdy, lightweight carrying case

One-year warranty.

Dolly Size	20 mm
Resolution	± 1 psi (0.01 MPa)
Accuracy	± 1% of full scale
Adhesion Strength	0-3000 psi (0-20 MPa)
Kit Weight	12 lbs (5.5 kg)
Case Dimensions	12" x 13" x 6" (43 x 33 x 15 cm)

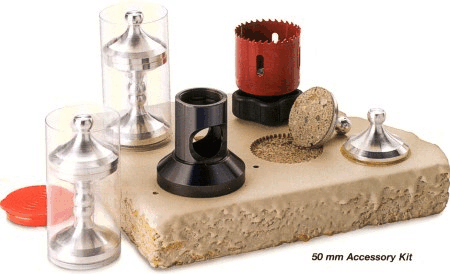

50 mm Accessory Kit
Ideal for lower bond strength finishes such as coatings on wood, concrete and plastic.
Larger surface area of dolly provides improved low range precision and repeatability.
Range 0 - 500 psi (0 - 3.5 MPa).
Includes 50 mm stand-off, 50 mm hole saw and 50 mm aluminum test dollies (12 ea).


Drilling Template for 50 mm Dollies
Drilling template and drill bits to isolate test area, ideal for thicker coatings on concrete.

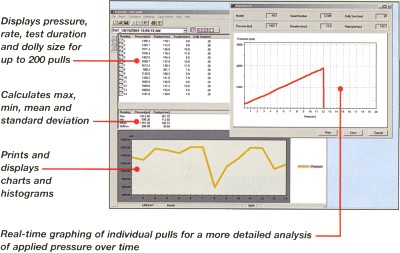

PosiSoft® for Windows® analysis software
See details above.


Adhesive Kit
Additional adhesive, mixing sticks, palettes and cotton swabs.


Dollies
Additional supplies of standard 20 mm and 50 mm dollies.
Custom 10 mm and 14 mm dollies.
