QC石英控制电流中断器

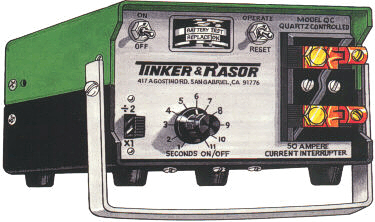

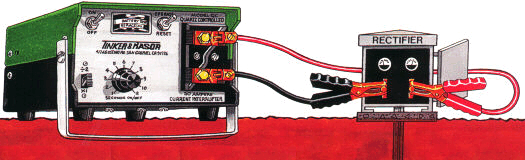

Tinker & Rasor's quartz Model QC controlled current interrupter allows synchronization of two or more interrupters at separate cathodic protection rectifier stations. The same accuracy can be expected as found in high quality quartz wrist watches. Simply select the time intervals, flip the switch, and the model QC will continuously cycle with precision.

Integrated circuitry assures long use under extreme field conditions. The instrument is housed in a rugged heavy duty aluminum case designed for easy battery access and with a protective cover for the panel controls.

Settings		1	2	3	4	5	6	7	8	9	10	11
X 1	Seconds ON	2.5	5	7.5	10	12.5	15	17.5	20	22.5	25	27.5
	Seconds OFF	27.5	15	22.5	20	17.5	15	12.5	10	7.5	5	2.5
Settings		1	2	3	4	5	6	7	8	9	10	11
/ 2	Seconds ON	1.25	2.5	3.75	5	6.25	7.5	8.75	10	11.25	12.5	13.75
	Seconds OFF	13.75	12.5	11.25	10	8.75	7.5	6.25	5	3.75	2.5	1.25

Exact Timing Ranges:
30-second cycle in 2.5 second increments
15-second cycle in 1.25 second increments

Current Ratings:
50 Amps at 28 VDC (resistive load).
50 Amps at 120 VAC (resistive load).
25 Amps at 240 VAC( resistive load).
 attery: One 12 Volt lantern type.

Dimensions: 5 3/4" x 3 3/4" x 10 ½" (146 x 95 x 267 mm)

Weight:
Operating weight less than 6 lbs (2.7 kg)
Domestic packaging weight 8 lbs (3.6 kg)
