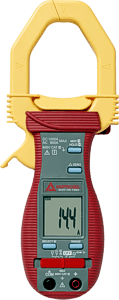

ACDC-100交流/直流钳形数字万用表

Amprobe’s ACDC-100 AC/DC Digital Clamp-On Multimeter is where accuracy, quality, and newest technology meet. The ACDC-100 offers superior AC/DC measurement capabilities, highest product quality and enhanced ergonomics with Red, Rubber, Ribs™ design.



1000A DC current, 800A AC current

Large, easy-to-read LCD display

Auto and manual ranging

Relative zero mode

Auto power off

Data hold

MAX capture function for inrush current measurements (30 ms response)

Diode Test

Audible continuity

Accommodates conductors up to 2.00” (50 mm) in diameter

"Third hand" - test probe holder

Rubber over-molded case with built-in probes storage

Carrying case, test leads, batteries (installed) and user manual included

Wide choice of Amprobe multimeter accessories

DC Voltage Ranges

400.0 mV, 4.000, 40.00, 400.0 V, 600 V

DC Voltage Accuracy

± 0.5% rdg ± 3 digits

AC Voltage Ranges

400.0 mV, 4.000, 40.00, 400.0 V, 600 V

AC Voltage Accuracy

± 1.5% rdg ± 4 digits

Input Impedance

10 MΩ

Transient Protection

6.5 kV (1.2 / 50 μs surge)

DC Current (clamp-on)

400.0, 1000 A

DC Current Accuracy

± 1.5% rdg ± 4 digits

AC Current (clamp-on)

400.0, 800 A (50-500 Hz)

AC Current Accuracy

± 1.5% rdg ± 5 digits

Overload Protection

1000 A dc or 800A rms continuous

Resistance Ranges

400.0 Ω, 4.000, 40.00, 400.0 kΩ, 4.000, 40.00 MΩ

Capacitance Ranges

50.0, 500.0 nF, 5.000 μF, 50.00 μF, 500.0 μF, 3000 μF

Diode Test

< 1.6 VDC @ 0.4 mA

Audible Continuity Test

Between 10 Ω and 120 Ω

Display

3-3/4 digit (4000 count) LCD display

Update Rate

3 per second

Polarity

Automatic

Operating Temperature

0°C to 40°C

Relative Humidity

< 80% RH up to 31°C decreasing to 50% RH at 40°C

Altitude

Operation below 2000 m. Indoor use.

Storage Temperature

-20°C to 60°C, < 80% RH (with battery removed)

Low Battery

Below approx. 2.4V

Power Supply

Two 1.5V AAA Size (NEDA 24G or IEC R03) batteries or two 1.5V AAA Size (NEDA 24A or IEC LR03) alkaline batteries.

Power Consumption

Typical 11 mA for ACA/DCA and 2.9 mA for other functions

Auto Power Off

After being idle for 30 minutes

Max Conductor Diameter

50 mm (2.00 in)

Special Features

30ms Max Hold; Data Hold; Relative Zero mode

Dimensions

227x 78 x 40 mm (8.9 x 3.1 x 1.6 in)

Weight

290 gm (10 oz)

Safety

Meets EN61010-1:2001; IEC61010-2-032(2002), EN61010-2-032(2002), UL61010B-2-032(2003), Category III 600 Volts AC & DC.
