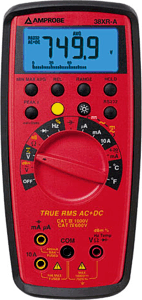

38XR-A数字万用表

添加时间:2010-11-1 编辑: 阅读:

  • 产品名称:38XR-A数字万用表
  • 产品定货号:MS-00381-00
  • 产地:美国
  • 推荐:
Description
The Amprobe 38XR-A True RMS digital multimeter (DMM) offers an optical PC interface and meets the needs of technicians testing electrical circuits up to 750 VAC / 1000 VDC and 10A, as well as the needs for testing components and digital logic. Component test capabilities include resistance, capacitance, frequency, diode test, and continuity. Circuit test capabilities include duty cycle, logic test, and dBm. An included temperature probe rated to 2372°F makes the Amprobe 38XR-A an amazingly versatile instrument.
Features
1000 VDC / 750 VAC
True RMS, AC + DC input
10 Amps AC/DC, fully safety fused
Frequency to 10 MHz
Capacitance to 400 µF
Temperature to 2372°F
Duty cycle
dBm
4-20 mA loop current test
Resistance to 40 MΩ
Continuity beeper
Min/Max, Average, Relative, Peak, and Data Hold
10,000 count backlight LCD display
Auto power off to save battery life
Separate door for easy battery and fuse access
Magne-Grip™ Holster with magnetic hanging strap
CAT IV 600V rated
Three-year warranty

Specifications
DC Voltage Ranges
1000 mV, 10V, 100V, 1000V
DC Voltage Accuracy
± 0.25% rdg ± 5 digits
AC  Voltage Ranges
1000 mV, 10V, 100V, 750V (45-2 kHz)
AC Voltage Accuracy
± 1.2% rdg ± 10 digits (except 750V) (45-500 Hz)
Voltage Resolution
100 µV
Voltage Input Impedance
400 mV: >100 MΩ, 4V: 10 MΩ, 40V to 1000V: 9.1 MΩ
Voltage Overload Protection
1000 VDC or 750 VAC RMS
DC Current Ranges
100 μA, 1000 μA, 10 mA, 100 mA, 400 mA, 10A
DC Current Accuracy
± 0.5% rdg ± 10 digits (± 1.5% rdg ± 10 digits for 10A range)
AC Current Ranges
100 μA, 1000 μA, 10 mA, 100 mA, 400 mA, 10A
AC Current Accuracy
± 2.0% rdg ± 10 digits (± 2.5% rdg ± 20 digits for 10A range)
Current Resolution
0.01 µA
Current Overload Protection
Fast-blow ceramic fuse
True RMS, AC Coupled
5% to 100% of range
Resistance Ranges
1000 Ω, 10 kΩ, 100 kΩ, 1000 kΩ, 10 MΩ, 40 MΩ
Capacitance Ranges
40 nF, 400 nF, 4 µF, 40 µF, 400 µF
Inductance Ranges
4 mH, 40 mH, 400 mH, 4 H, 40 H
Frequency Ranges
100 Hz, 1000 Hz, 10 kHz, 100 kHz, 1000 kHz, 10 MHz
Duty Cycle Measurement
0% to 90%, 5V logic, 40 Hz to 20 kHz
Temperature Measurement
-120 t0 1300°F (-4 t0 +2372°F)
Logic Test
TTL, CMOS, to 20 MHz
4-20 mA Current Loop Test
0-100% of span
dBm Measurement
-13 dBm to +50 dBm, 45 Hz to  20 kHz
Continuity Test
Audible indication at < 40 Ω in 100 ms
Diode Test
1.0 mA, 3.0 Vdc
Display
4-3/4 digit (10000 count) LCD display plus 41-segment bar graph
Measurement Rate
2 times per second
Operating Temperature
0°C to 45°C (32°F to 113°F) at < 70% RH
Storage Temperature
-20°C to 60°C, < 80% RH (with battery removed)
Power Supply
9V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life
150 hours typical with alkaline
Dimensions
196 x 96 x 60 mm (7.8 x 3.55 x 2.4 in)
Weight
400 g (0.9 lb) with battery


产品名称产品简介产品编号
38XR-A数字万用表MS-00381-00
