ES型水密整流器

添加时间:2010-11-1 编辑: 阅读:

  • 产品名称:ES型水密整流器
  • 产品定货号:MS-00367-00
  • 产地:美国
  • 推荐:

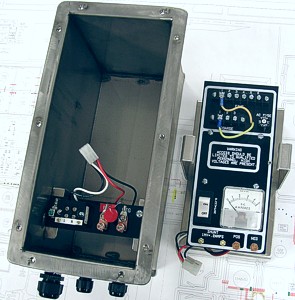

Farwest's Model ES-WT is a watertight rectifier for use in underground utility vaults that are subject to flooding. With a maximum output of 200 watts, Model ES-WT can be used where conventional rectifiers would fail in flooding conditions. All completed units are pressurize-tested under water for leaks.



                                                                                                                                           Features

14 gauge, 316L stainless steel cabinet

Dimensions 8” x 9” x16”

Gasketed door is bolted on all four sides for positive sealing

Unique lip-out case design eliminates sharp edges inside case

All components mounted on easy access slide-out chassis

Watertight gland fittings for all three openings

35 Amp encapsulated silicon diode bridge

Heavy-duty design transformer w/ 800 cm/a min. wire size

Silk-screened panel

Fast Acting AC & DC lightning protection

All-circuit breaker protection (no fuses)

External 50 mV shunt

Rugged moving magnet ammeter

Available Sizes

Model Number

DC Output Voltage

DC Output Current

ES-WT 12-5

12V

5A

ES-WT 12-10

12V

10A

ES-WT 20-5

20V

5A

ES-WT 20-10

20V

10A

ES-WT 30-5

30V

5A

ES-WT 40-5

40V

5A






产品名称产品简介产品编号
ES型水密整流器MS-00367-00
