ES空冷阴极保护整流器

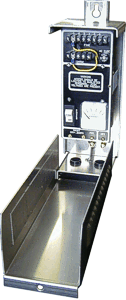

Model ES-I Rectifier


Circuit breaker

Heavy duty aluminum case for post or wall mount

Unique opening cabinet for total access to components

Assembly only 13" high x 5" wide x 5.5" deep

Ammeter only

3 coarse and 6 fine tap

Silicon rectifying elements

AC and DC lightning protection

AC input terminal block

120V AC single phase input

Variac control option

Standard outputs: 6V-5A, 6V-10A, 12V-5A, 12V-10A, 20V-5A, 20V-10A, 30V-5A, 40V-5A.

Other outputs available not exceeding 200W.

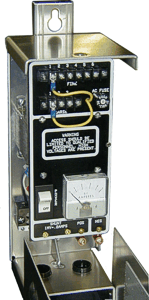

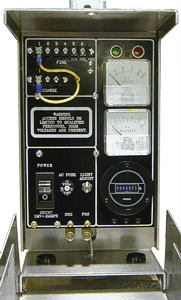

Model ES-II Rectifier

Circuit breaker

Heavy duty aluminum case for post or wall mount

Unique opening cabinet for total access to components

Assembly only 13" high x 7.5" wide x 5.5" deep

Voltmeter and ammeter

3 coarse and 6 fine taps

Silicon rectifying elements

AC and DC lightning protection

AC input terminal block

120V AC single phase input

Optional DC failure lights are available

Variac control option

Standard outputs: 6V-5A, 6V-10A, 12V-5A, 12V-10A, 20V-5A, 20V-10A, 30V-5A, 40V-5A.

Other outputs available not exceeding 200W.

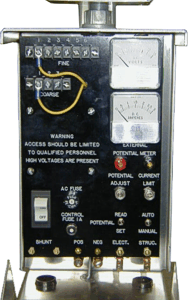

Model ES-II Rectifier
with Automatic Potential or Current Control


Heavy duty aluminum case for post or wall mount

Unique opening cabinet for total access to components

Assembly only 13" high x 7.5" wide x 5.5" deep

Main disconnect switch

Solid state controller, either potential or current control

Voltmeter and ammeter

Potential meter

Silicon rectifying elements

AC and DC lightning protection

AC input terminal block

120V AC single phase input

120 VAC convenience outlet

Standard outputs: 6V-5A, 6V-10A, 12V-5A, 12V-10A, 20V-5A, 20V-10A, 30V-5A, 40V-5A.

Other outputs available not exceeding 200W.

ES Utility Line Rectifier Ordering Guide

Configure an 8-position model number like ES-I-V 20-5
Positions from left to right are as follows:

Position #1: Model

ES-I = ES Utility Rectifier

ES-II =ES Utility Rectifier

Position #2: Output Control Type

S = Standard Rectifier (Manual taps)
V = Variac Control
E = Constant Voltage Control (ES-II only)

D = Constant Current Control (ES-II only)
P = Constant Potential Control (ES-II only)
M = Multiple Modes (ES-II only)

Position #3: DC Output Voltage*

List DC Voltage Desired (6V, 12V, 20V, 30V or 40V)

Position #4: DC Current Output*

List DC Current Desired (5A or 10A))

Position #5: Special or Optional Features

H = Hour Meter (ES-II only)

K = Red or Green Status Lights ((ES-II only)

* Combinations are 6V-5A, 6V-10A, 12V-5A, 12V-10A, 20V-5A, 20V-10A, 30V-5A,  40V-5A
