CP数字电压表

添加时间:2010-10-27 编辑:X061 阅读:

  • 产品名称:CP数字电压表
  • 产品定货号:MS-00348-00
  • 产地:美国
  • 推荐:

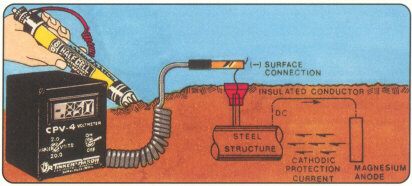

CP Cathodic Protection Voltmeter is a revolutionary instrument for measuring DC structure to earth potentials of various buried or submerged metallic objects. Powered by an ordinary 9-volt battery, the Model CP gives an immediate reading in large ½ inch (12.7mm.) liquid crystal display numerals. The large scale integrated circuit has a built-in filter to reject AC interference. Input resistance of 11 megohms (11 million ohms) yields potentiometer quality voltage readings, and digital readout eliminates interpolation of voltages. This small, lightweight instrument needs no warm-up time, is insensitive to temperature, and can be read in direct sunlight. Low current CMOS circuitry assures long battery life, and the die-cast metal case makes the CP a durable instrument for the field.Study the features and specs and see how they combine to make the Tinker & Rasor CP the most accurate and reliable cathodic protection voltmeter ever afforded.

Features

Die-cast aluminum case

Baked enamel finish

9-Volt transistor battery, long life

Liquid crystal display digital meter

Integrated circuites

Two heavy-duty coil cables with /clamp & banana plugs

No warm-up time

Specifications

Accuracy

+0.1% + last digit

Scale

Dual scale: 0 to 1.999 V

Battery

9 Volt transistor type

Dimensions

4 5/8" x 3 5/8" x 2 3/16" (117 x 92 x 59 mm)

Weight

16 oz (454 g)

Shipping weight

3 1/2 lbs (1.59 kg)




产品名称产品简介产品编号
CPV-4数字电压表The Tinker & Rasor Model CPV-4 Cathodic Protection Voltmeter is a revolutionary instrument for measuring DC structure to earth potentials of various buried or submerged metallic objects.MS-00348-00
