脯氨酸空冷阴极保护整流器
添加时间:2010-10-26 编辑:X061 阅读:次
- 产品名称:脯氨酸空冷阴极保护整流器
- 产品定货号:MS-00340-00
Standard Rectifier Features
Industry leading three-year limited warranty
16-gauge, NEMA 3R, powder coated cabinet with front opening door
Wall mounting brackets (pole mount brackets are optional)
Heavy-duty transformer with 15% overdesign for reserve capacity
Slide-out chassis
20-step voltage output adjustment
Silicon diodes with surge suppressors
Hinged Bakelite front panel
Accessible front panel shunt
Magnetic AC circuit breaker
Hoyt model 17-3 separate volt and amp meters
All electrical connections are double-nutted or soldered
Multi-strand, high temperature insulated flexible wiring
Optional Rectifier Features
AC and/or DC lightning protection
Efficiency filter chokes
Communication filters
Meter switches
Elapsed time meter
AC/DC failure light
DC circuit breakers or fuses
115 VAC convenience outlet
Alternate output control (constant current, constant voltage, constant potential
ETL or CSA third party certification
Other options per request of customer

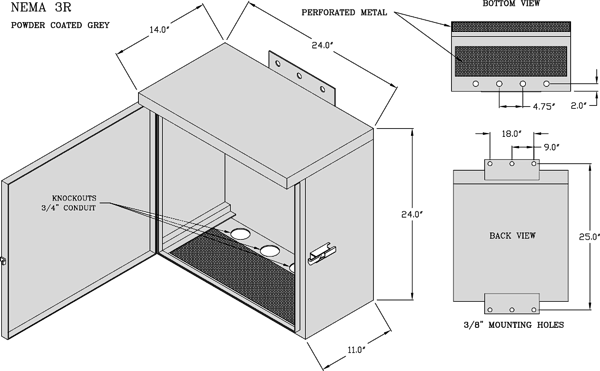

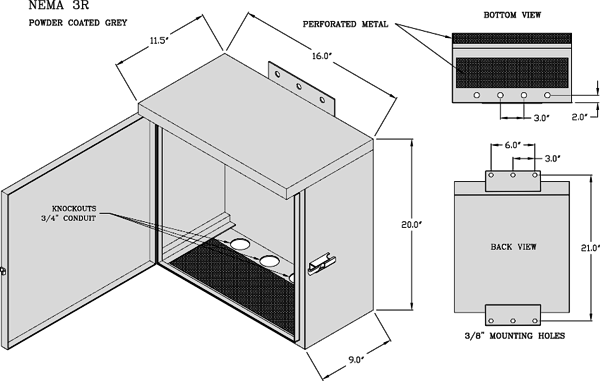

Typical Cabinet Dimensions |
ProLine Rectifier Ordering Guide
Configure a model number like GSAI 20-10 AC
Positions from left to right are as follows:
Position #1: Model |
G = ProLine Series |
Position #2: Type |
S = Standard Rectifier (manual taps) D = Constant Current (solid state) E = Constant Voltage (solid state) |
P = Constant Potential (solid state) M = Multiple modes (solid state) V = Variac control |
Position #3: Cooling |
A = Air Cooled |
Position #4: Stack Type |
I = Silicon |
Position #5: DC Volts |
List Maximum DC Voltage Desired. Do not exceed 1,500 watts total. |
Position #6: DC Amps |
List Maximum DC Amperage Desired. Do not exceed 1,500 watts total. |
Position #7: AC Input Voltage & Phase |
G = 115V, single-phase, 60 Hz |
Position #8: Special or Optional Features |
C = AC and DC arrestors D = DC arrestor E = AC arrestor F = Efficiency filter choke G = Communications filter |
H = Meter switches K = AC/DC failure warning light M = DC breaker or fuse R = 115 VAC convenience outlet Q = Other, specify |
