S-2075太阳能混合动力系统

GlobalSolarHybrid™ by Global Thermoelectric, Inc. is a high-grade photovoltaic (PV) power system backed by an ultra-reliable thermoelectric generator (TEG) that operates on natural gas or liquefied petroleum gas (LPG) in any weather. The combination of PV and TEG has created a remote prime power solution that is both reliable and respectful of the environment. It can have lower initial costs than solar-only systems, and lower operating costs than fuel-based systems.

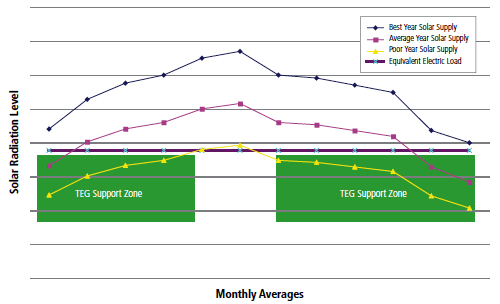

GlobalSolarHybrid hybrid power ensures bulletproof, 24/7/365 operation for applications such as wellhead monitoring equipment, supervisory control and data acquisition (SCADA), cathodic protection, and communications equipment. It overcomes the limitation of pure solar power, which can be unreliable depending on weather. By utilizing solar power when available, it overcomes the operating and maintenance costs of fuel-only power systems.

GlobalSolarHybrid is respectful of the environment. It has significantly lower fuel use and greenhouse gas emissions than most other power generation technologies. It has a smaller environmental footprint than pure solar systems, since it uses fewer PV panels and batteries, and extends the life of those batteries.

GlobalSolarHybrid is ideal when:

Solar is an attractive option but high reliability is required.

Where solar conditions are not well known.

Fuel consumption must be minimized.

Only liquid fuel is available.

Long intervals are desired between site visits.

Load ranges up to 150 Watts.

Common Applications

Cathodic protection.

Telecom service providers for small remote repeaters.

SCADA systems of all types.

Pipeline or wellhead automation and monitoring.

Security and surveillance applications difference.

Key Benefits

Reduced initial cost

Increased reliability

Lower operating costs than fuel based system

Reduced overall maintenanc

Environmentally sensitive

Can be created out of an existing PV system

Two standard configurations:

GlobalSolarHybrid 2000 Series for solar radiation levels greater than 4 peak-sun hours a day. Ideal for sites from the equator to 40 degrees north latitude.

GlobalSolarHybrid 3000 Series for areas with 3 to 4 peak-sun hours a day. Recommended for sites above 40 degrees north latitude.

Global Thermoelectric’s Model S-2075 Solar Hybrid System provides a photovoltaic based power system backed up by a thermoelectric generator. The result is environmentally friendly, ultra reliable DC power for any application where regular utilities are unavailable or unreliable.

S-2075 Specifications

Max Continuous Load at 20ºC	75 Watts at 24 Volts
Voltage Adjustment	24-30 Volts
Reverse Current Protection	Included
Photovoltaic Array Power	520 Watts, max
Battery Type	Sealed valve regulated gelled electrolyte lead-acid
Battery Capacity	600 AH, 24 Vdc, 20ºC
Thermoelectric Generator Power	108 Watts as as required
Battery Box	NEMA 3R
Fuel Consumption, Texas (31ºN)	Natural Gas: 0 - 675 m33/yr (0 - 24,000 ft3/yr) Propane: 0 - 850 L/yr (0 - 225 USgal/yr)
Fuel Consumption, Wyoming (42ºN)	Natural Gas: 0 - 750 m3/yr (0 - 26,500 ft3/yr) Propane: 0 - 950 L/yr (0 - 250 USgal/yr)
Natural Gas	1000 BTU/Sft3 (37.7 MJ/Sm3) max 7 mg/Sm3 (~5 ppm) H2S max 120 mg/Sm3 H2O max 1% free O2 1724 kPa (250 psi) max supply pressure 103 kPa (15 psi) min supply pressure
Operating Temperature	-40ºC (-40ºF) to 45ºC (115ºF)
Environmental Conditions	Unsheltered

Standard Features:

High Efficiency Multi-Crystal Photovoltaic Modules

Sealed Valve Regulated Gelled Electrolyte

Lead-Acid Batteries

NEMA 3R Battery Box

Autostart Thermoelectric Generator

Intelligent System Control Electronics with Temperature Compensation

System Benefits:

Environmentally friendly

Highly reliable (99.9% +)

Cost effective

System Includes:

PV Modules

TEG and TEG Mount

PV Mounts and Poles

Control Electronics

Batteries

Interconnect Wiring

Battery Box

Manual
