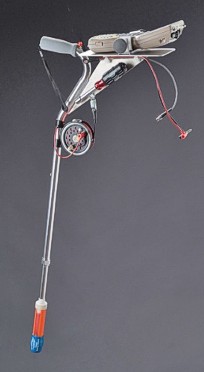

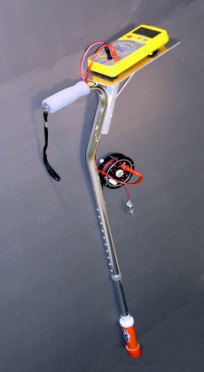

Data Cane Model TY-100 Reel with 100 ft of test wire For use with digital voltmeter |
Data Cane Model DY-100 Reel with 100 ft of test wire For use with data logger |
|
Specifications |
Model TY-100 |
Model DY100 |
|
Dimensions |
Adjustable height from 30" to 39" | |
|
Weight |
4 lbs (without instrument or half cell) | |
|
Tubing Material |
Aluminum | |
|
Reel |
Pflueger Model 1595 ½ RC single-action reel | |
|
Wire |
100 ft (minimum) of #22 awg 7/30 tinned copper with 0.015" (minimum) avg thick PVC coated wire (red). | |
|
Instrument Mount |
Mounting bracket with adjustable screw grips | |
|
Electrode/Half Cell |
1/4-20 female threaded connector compatible with most half cell reference electrodes | |
|
Tools |
One (1) 7/16" nut driver mounted on cane | |
|
Warranty |
Warranted for defects and workmanship for one year from date of purchase. | |
|
Setup |
Fully wired to accept any digital voltmeter* |
Fully wired to accept any data logger or data collector* |
|
Data Logger Entry |
|
Data entry pushbutton. |
 |
 |
|

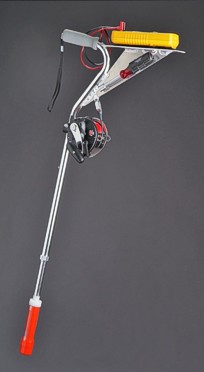

Data Cane Model TY-250 Reel with 250 ft of test wire For use with digital voltmeter |
Data Cane Model DY-250 Reel with 250 ft of test wire For use with data logger |
|
Specifications |
Model TY-250 |
Model DY250 |
|
Dimensions |
Adjustable height from 30" to 39" | |
|
Weight |
6 lbs (without instrument or half cell) | |
|
Tubing Material |
Aluminum | |
|
Reel |
Penn 345 GTi Level Wind Reel | |
|
Wire |
250 ft (minimum) of #22 awg 7/30 tinned copper with 0.015" (minimum) avg thick PVC coated wire (red). | |
|
Instrument Mount |
Mounting bracket with industrial grade Velcro® | |
|
Electrode/Half Cell |
1/4-20 female threaded connector compatible with most half cell reference electrodes | |
|
Tools |
One (1) 7/16" nut driver mounted on cane | |
|
Warranty |
Warranted for defects and workmanship for one year from date of purchase. | |
|
Setup |
Fully wired to accept any digital voltmeter* |
Fully wired to accept any data logger or data collector* |
|
Data Logger Entry |
|
Data entry pushbutton. |
| 产品名称 | 产品简介 | 产品编号 |
|---|---|---|
| DY100拐杖式测试卷线 | Back-saving & time saving devices to assist corrosion;professionals in measuring pipe-to-soil potentials | MS-00337-00 |
