Each SunStation is a single-channel device with an independent ground, thus any Polatrak instrument can output to this device. Anode currents, for example, can now be read directly, in real numbers, as can current densities. This system can save an operator hundreds of thousands of dollars in reduced inspection time, and improves quality and repeatability of data to a level never before available.

The readouts are strategically located where ROV intervention is required; CP inspection is achieved whenever the ROV visits. The mounting panel around the unit indicates inspection point location information and the designation of each channel.

Subsea trees & manifolds

Deepwater flow lines

Floating production systems

Pipeline sleds

Inside soft ballast tanks and center wells

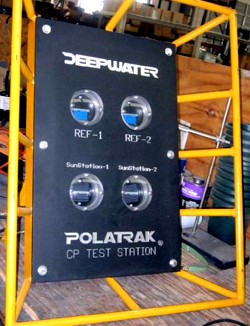

Underwater cage with two SunStations.

The rear of the SunStation CP Test Panel.

Competitive pricing provides rapid ROI.

Eliminates the need for OQ personnel offshore.

Provides repeatable accurate data and eliminates operator error.

Provides positive real-time verification of electrical continuity or isolation.

Eliminates the hassle of ROV interfaced probes.

Provides more selective measurement at points not easily accessible with an ROV mounted probe.

Reduces cost and eliminates wear and tear on ROV systems.

Depth Rating: 1,000 FSW (300 m) with Delrin Housing or 10,000 FSW (3000 m) with SS Housing.

Design Life: 20 years.

Readouts: Four 12 mm (0.5") LED digits

± 2 Volt (1 mV resolution)

±- 200 mV (0.1 mV resolution)

Housing: Delrin, heavy-wall thermoplastic, or 316 stainless steel (depending on depth requirements).

Lens: Acrylic.

Antifouling: CuNi lens fasteners.

Interface: V-String™ reference electrodes & ground.

MA-1™ Monitored anode.

DR-2™ Reference Electrode.

DR-2 CD™ Polarization Monitor.

Can take any DC input from passive sensors.

Can be mounted to a RetroClamp™ for retrofit applications (clamp provides reference ground).
