订货号: | MM-08443-00 |
产地: | 美国 |
品牌: | |
开发编号: | N |
市场价: | ¥ |
*此产品根据配置不同价格不同 |
*此价格为参考价格,具体价格以订单合同为准 |

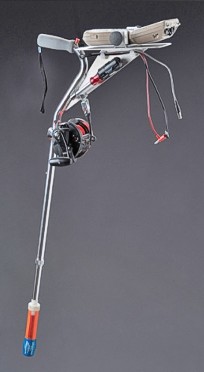

Data Cane Model TY-100 Reel with 100 ft of test wire For use with digital voltmeter |

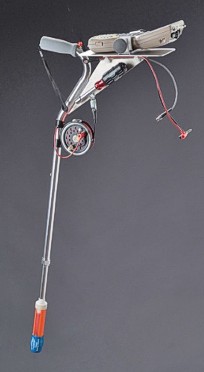

Data Cane Model DY-100 Reel with 100 ft of test wire For use with data logger |
Specifications |
Model TY-100 |
Model DY100 |
Dimensions |
Adjustable height from 30" to 39" | |
Weight |
4 lbs (without instrument or half cell) | |
Tubing Material |
Aluminum | |
Reel |
Pflueger Model 1595 ½ RC single-action reel | |
Wire |
100 ft (minimum) of #22 awg 7/30 tinned copper with 0.015" (minimum) avg thick PVC coated wire (red). | |
Instrument Mount |
Mounting bracket with adjustable screw grips | |
Electrode/Half Cell |
1/4-20 female threaded connector compatible with most half cell reference electrodes | |
Tools |
One (1) 7/16" nut driver mounted on cane | |
Warranty |
Warranted for defects and workmanship for one year from date of purchase. | |
Setup |
Fully wired to accept any digital voltmeter* |
Fully wired to accept any data logger or data collector* |
Data Logger Entry |
|
Data entry pushbutton. |

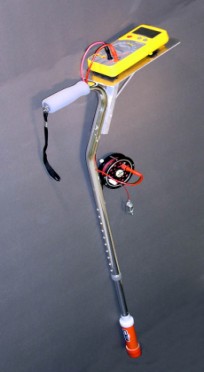

Data Cane Model TY-250 Reel with 250 ft of test wire For use with digital voltmeter |

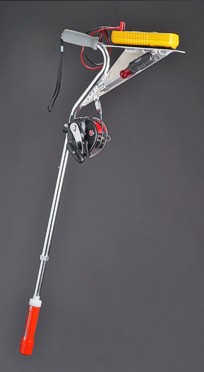

Data Cane Model DY-250 Reel with 250 ft of test wire For use with data logger |
Specifications |
Model TY-250 |
Model DY250 |
Dimensions |
Adjustable height from 30" to 39" | |
Weight |
6 lbs (without instrument or half cell) | |
Tubing Material |
Aluminum | |
Reel |
Penn 345 GTi Level Wind Reel | |
Wire |
250 ft (minimum) of #22 awg 7/30 tinned copper with 0.015" (minimum) avg thick PVC coated wire (red). | |
Instrument Mount |
Mounting bracket with industrial grade Velcro® | |
Electrode/Half Cell |
1/4-20 female threaded connector compatible with most half cell reference electrodes | |
Tools |
One (1) 7/16" nut driver mounted on cane | |
Warranty |
Warranted for defects and workmanship for one year from date of purchase. | |
Setup |
Fully wired to accept any digital voltmeter* |
Fully wired to accept any data logger or data collector* |
Data Logger Entry |
|
Data entry pushbutton. |
定货号 | 产品名称 | 规格配置 / 简介 | 市场价/(会员价) |
---|---|---|---|
MM-08443-00 | DY100拐杖式测试卷线 | /() |
